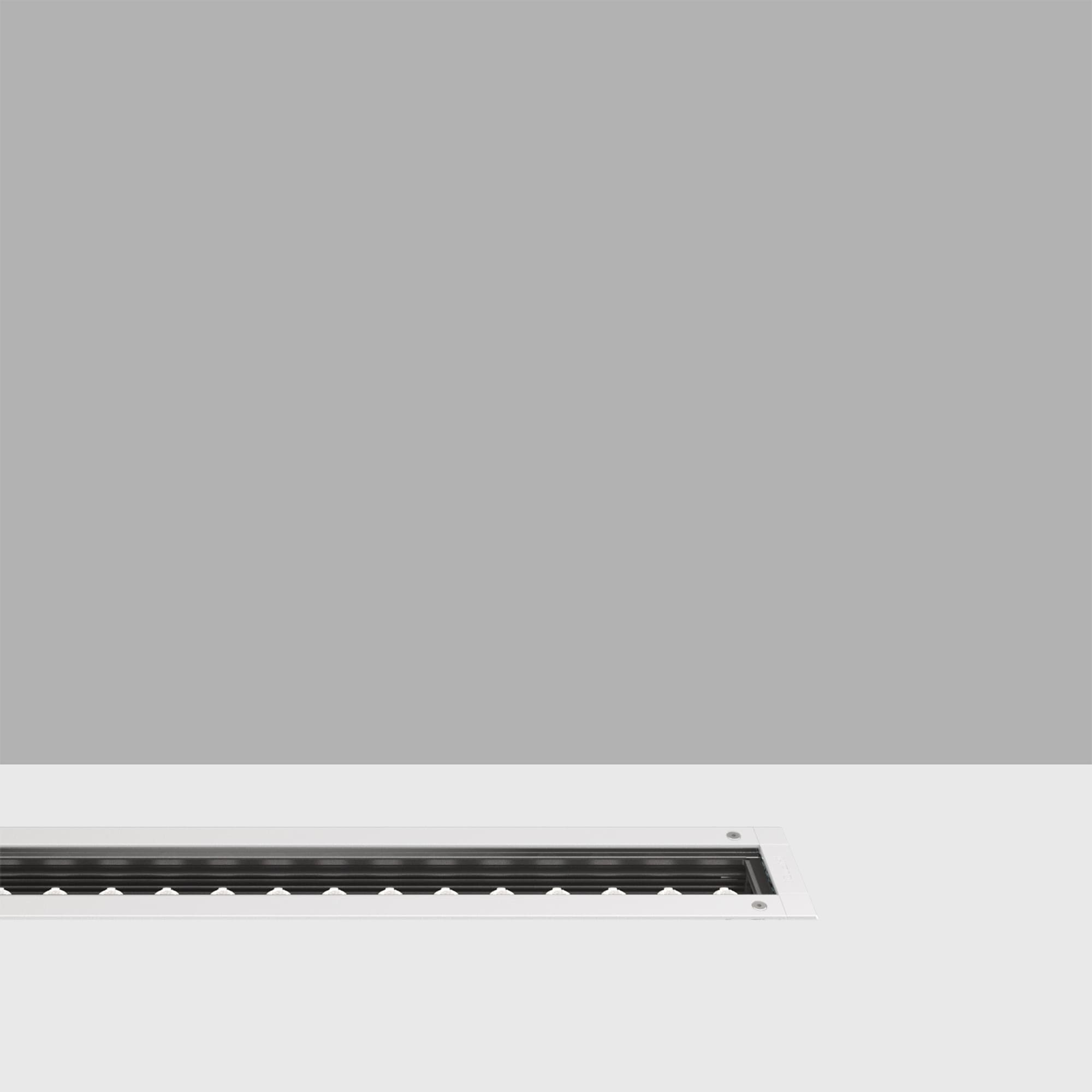

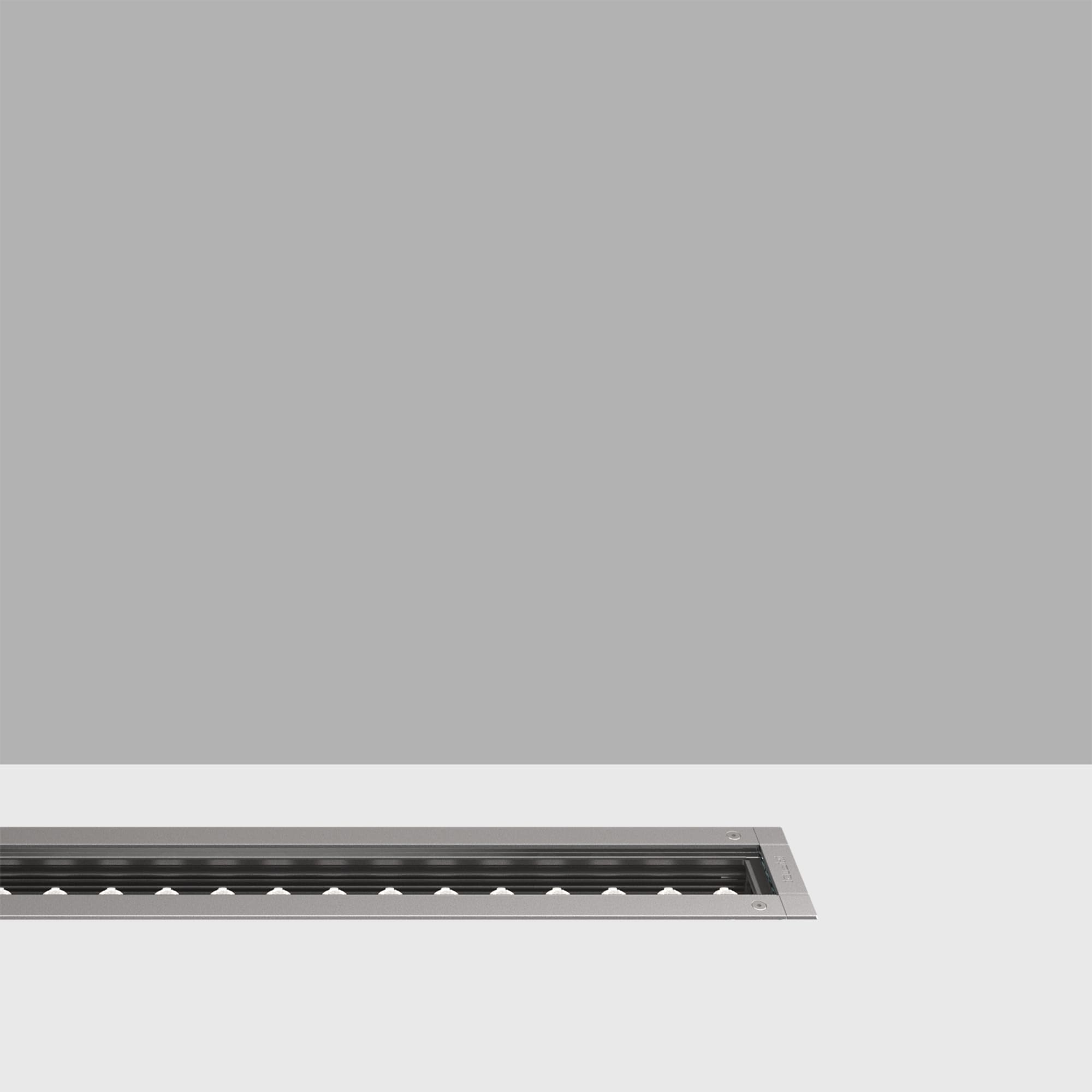

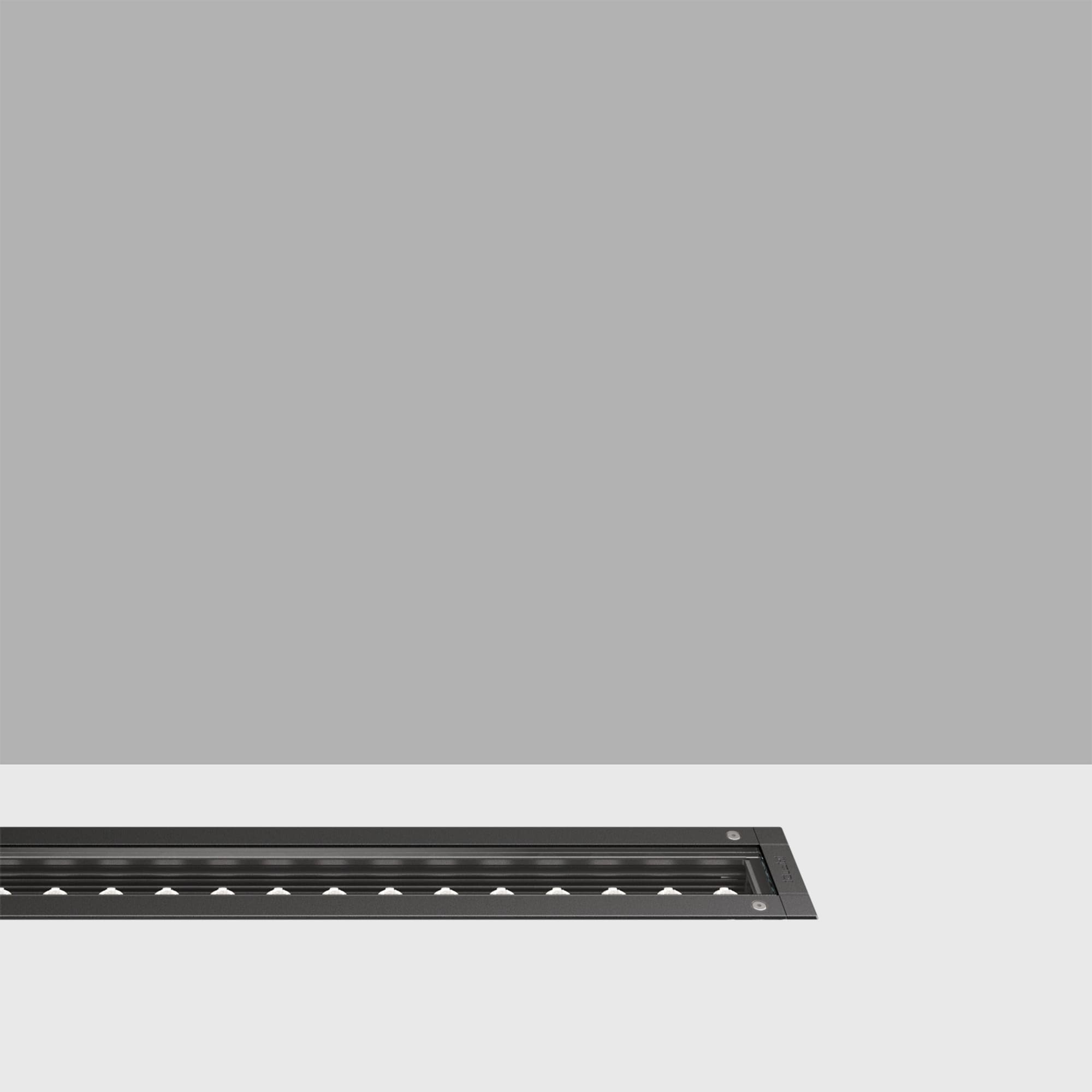

Recessed Linear Luminaire – Warm White – 48 Vdc DMX512-RDM – L=907mm – Wide Flood optic - Non-slip glass cover EY41
26W 3600lm - light source value
30.7W 1404lm - system values
Luminous Efficiency (system value): 45lm/W
Electronic control card included
Electronic Power supply not included
Optic: WF - Wide Flood 48°
Size (mm): 907x87x106, Weight (kg): 3.82
Environment: indoor/outdoor
Design: Jean Michel Wilmotte
This product requires the accessories listed below to be installed:
Steel cable L=250 for application on wall
Kit with steel cables with small reinforcement plates for application on false ceiling - L=600
Outer casing with no end caps - L=904
Pair of outer casing caps - for stand alone applications (single product) L=8.3 mm
Pair of outer casing caps - for continuous line applications (several products) L=16 mm
Outer casing intermediate joint for continuous line applications - L= 4mm
Couple of terminal heads - for stand alone application (single product) L = 18 mm
Couple of terminal heads - for continuous rows application (more products) L = 44 mm
Power supply 240W - VIN = 90-305VAC 47/63Hz Vout = 48Vdc (44,8÷51,2Vdc) dimensions: 244x68x38.8
Power supply 320W - VIN = 90÷305Vac 47/63Hz Vout = 48Vdc (43-52Vdc) 252x90x43.8
Power supply 480W - VIN = 90-305VAC 47/63Hz Vout = 48Vdc (40,8-50,4Vdc) dimensions: 262x125x43.8
Power supply 120W - VIN = 90-305VAC 47/63Hz Vout = 48Vdc (43÷53Vdc) dimensions: 220x68x38.8
IP66 wiring box - dim 378x188x130h
